Model No.: YCK-500
Brand: YICHUANG
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Workpiece Processing Diameter: 50mm～500mm
Workpiece Length: 500mm～2500mm
Processing Crescent Groove Specification: D6-D50
Machine Size: 4500*1800*1950mm
The CNC roller
Thread Milling Machine is an advanced machine tool equipment specially used for processing threads and roller grooves. It adopts SIEMENS CNC system, equipped with professional
Roller Milling Machine automation control software and humanistic roller milling machine graphical Chinese operation interface, and has the original dynamic simulation function of roller milling and measurement process.

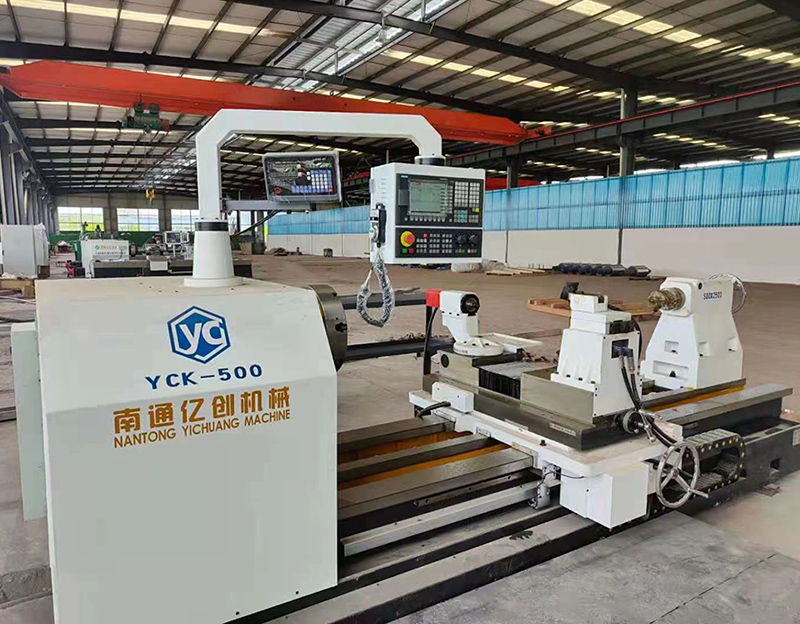

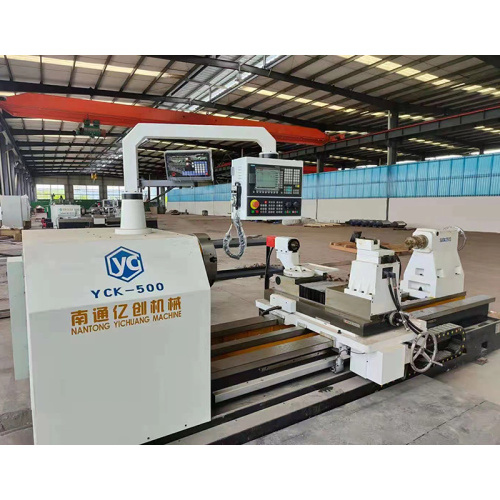

YCK-500
Cnc Thread Milling Machine is a machine tool specially designed and customized by our company for the steel industry. It can process the precision rib grooves of carbide roller rings, tungsten carbide composite rollers, high-speed steel rollers and ordinary rollers. The machine tool automatically cuts crescent grooves with different rotation directions and arbitrary helical angles, and can divide or space the roller circumference in any equal (or unequal) divisions; it can automatically engrave product specifications, grades, trademarks and other marks at any position on the roller.
The full adoption of advanced CNC technology and processing programming software has relatively simplified the mechanical structure of the milling machine and reduced some mechanical transmission links. While reliability, flexibility and efficiency have been comprehensively improved, the amount of maintenance has been significantly reduced.
The milling machine adopts SIEMENS 808D 4-axis distributed computer numerical control system, equipped with the seller's professional
Roll Milling Machine automation control software and a roll milling machine graphical Chinese operation interface that is in line with human habits. It has an original dynamic simulation function of the roll milling machine milling and measurement process.
The four CNC drive axes of the milling machine are equipped with SIEMENS fully digitally controlled AC servo motors. Since the AC servo motors have the advantages of high precision, maintenance-free and strong environmental adaptability, the milling machine can work reliably for a long time under harsh on-site environmental conditions. .
The main bearings of the milling machine are all made of INA, FAG or NSK products.
Crescent groove forming function and milling method:
1. Basic crescent groove generating function: The tool bar axis of the flying cutter milling machine and the workpiece (roller) rotary axis form a 90º angle with each other, the tool bar spindle axis is placed at the center of the roll ring groove, and the tool bar head is located on the plane perpendicular to the workpiece axis and the tool bar axis. When the machine tool is working, the tool bar spindle and the roll complete the interpolation rotation movement, and the tool bar axis performs the feed movement toward the center of the workpiece until the tool bar spindle axis reaches the required center of the projection arc of the roll ring groove transverse rib (crescent groove).
2. Basic milling method:
Manual tool setting, program control, automatic milling
Technical parameter:
| Model | YCK-500 |
| Maximum diameter of workpiece | Φ500mm |
| Maximum length of workpiece | 2500mm |
| Applied for thread specification | Φ6~Φ50 |
| Rotation speed of workpiece (Servo） | 0~32rpm (Servo） |
| The way of cutting | Fly-cutting |
| Rotate speed of machine tool spindle | 30~3000rpm2.2kw |
| Minimum feed amount | 0.001mm（°） (Servo） |
| Bore-hole of headstock spindle | MT5# |
| Chuck of headstock spindle | Φ400mm |
| Rotational speed of spindle | 0~400 rpm |
| Overall dimensions of machine tool | 4500×1700×2100mm |
| Cooling pump motor | 90w(380V) |
| Control the working power of the system | DC24V、50HZ |
| CNC configuration | Siemens 808D numerical-controlled system |
