Name: CK8480 CNC roll turning lathe
Uploaded: 2024-11-25T06:36:24+08:00
Description: The High precision heavy duty CNC roller lathe has an advanced and reliable structure, mature technology, good

High precision heavy duty CNC roller lathe

Payment Type:L/C,T/T

Incoterm:FOB,CIF

Min. Order:1 Set/Sets

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

Product Attributes

Model No.: CK8480

Brand: YICHUANG

Out-of-warranty Service: Video Technical Support, Online Support

Maximum Machining Diameter: Φ880mm

Workpiece Length: 500mm～3500mm

Spindle Speed: 1rpm～200rpm

Machine Size: 6800x2800x1850mm

Supply Ability & Additional Information

Payment Type: L/C,T/T

Incoterm: FOB,CIF

Packaging & Delivery

Selling Units:

Set/Sets



CK8480 CNC roll turning lathe



CK8450 CNC Roll lathe working video



CK84100 CNC Heavy duty roll lathe



The High precision heavy duty Cnc Roller Lathe has an advanced and reliable structure, mature technology, good appearance, and complete and reliable safety protection devices. The Cnc Roll Lathe greatly improves processing efficiency and product quality, and also reduces production costs and scrap rates. It is an indispensable and important equipment in modern manufacturing.

Performance characteristics:

● High rigidity design: CNC roll lathes adopt a high-rigidity frame structure design, which not only enables them to have strong cutting capabilities, but also meets the processing requirements of precision parts. This design ensures that the machine tool can maintain stability and precision during long-term, high-intensity processing.

● Modularity and standardization: The component design of the machine tool adopts modularization, high degree of standardization, and good interchangeability, which not only improves the reliability and stability of the machine tool, but also facilitates repair and maintenance.

● Advanced control system: CNC roll lathes are usually equipped with Siemens CNC systems, which can achieve high-precision positioning and control, improve processing efficiency and product quality.

● Easy operation: The machine tool has advanced design, reliable performance, and easy operation, which allows operators to easily get started and quickly master the use of the machine tool.

Technical parameter:

Maximum machining diameter	Φ880mm
Workpiece length	500mm～3500mm
Spindle speed	1rpm～200rpm
Spindle center height	1320mm
Spindle motor power	45KW
Z-axis motor power	5.2KW
X-axis motor power	3.0KW
Z-axis feed speed range	1～3000mm/min
X-axis feed speed range	1～2000mm/min
Distance from spindle center to guide rail	580mm
Distance from spindle center to tailstock center	3500mm
Distance from spindle center to carriage	470mm
Diameter of spindle end chuck	Φ800
Spindle center	Morse No. 6
Tailstock center	Morse No. 6
Tailstock center load	15000Kg
Tailstock sleeve stroke	150mm
Surface roughness of fine turning outer circle	≤Ra0.8μm
Fine turning outer circle roundness	≤0.01 mm
Minimum unit of longitudinal and lateral movement	0.001 mm
X-axis ball screw nominal diameter	Φ63
Z-axis ball screw nominal diameter	Φ80
Positioning accuracy A (X axis)	0.012mm
Positioning accuracy A (Z axis)	0.045mm
Repeat positioning accuracy R (X axis)	0.007mm
Repeat positioning accuracy R (Z axis)	0.01mm
Reverse difference B (X axis)	0.006mm
Reverse difference B (Z axis)	0.012mm
Installation size of machining tool	3004040mm
Machine size (lengthwidthheight)	680028001850mm
Net weight of machine tool	20000Kg

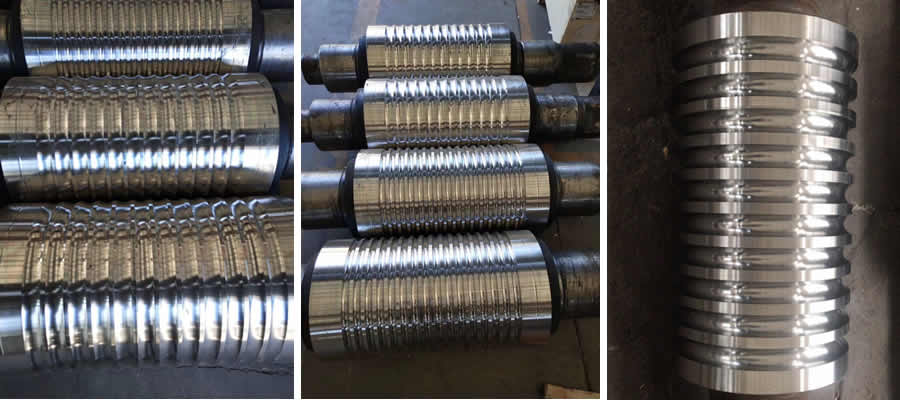

Parts machined by CNC Roll Lathe:
