Product Attributes

Model No.: YCK-500CH

Brand: YICHUANG

Out-of-warranty Service: Video Technical Support, Online Support

Workpiece Diameter: 50mm～500mm

Workpiece Length: 500mm～2500mm

Machining Crescent Groove Specifications: D6-D50

Machine Size: 4500x1800x1950mm

Supply Ability & Additional Information

Payment Type: L/C,T/T

Incoterm: FOB,CIF

Packaging & Delivery

Selling Units:

Set/Sets



YCK-500CH Roll milling machine working video



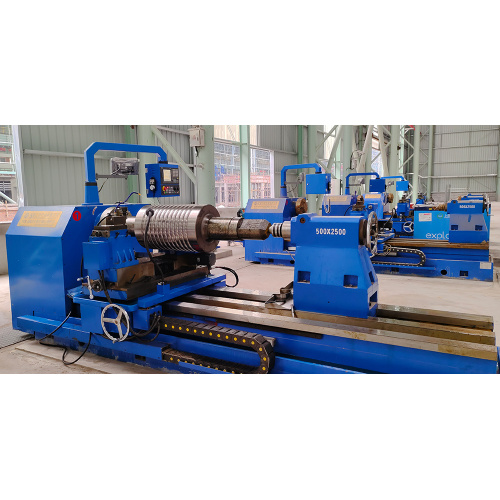

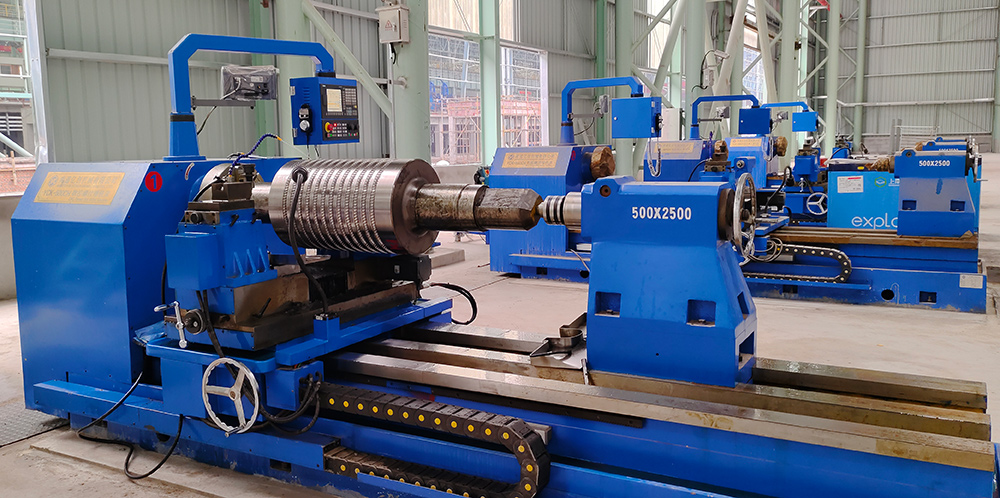

CK8450 CNC Roll lathe working video



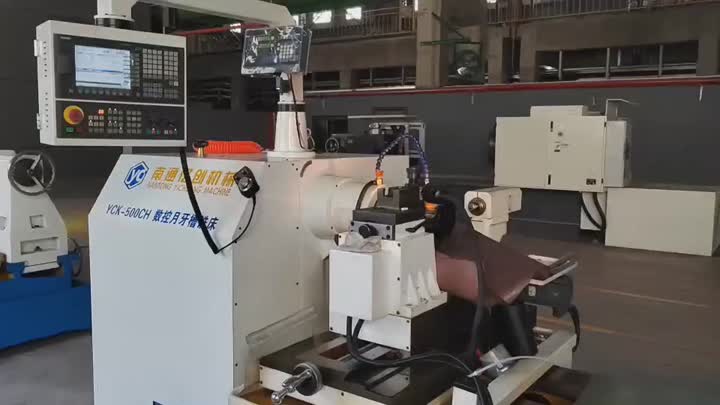

YCK-500CH CNC thread milling machine



Product Overview:

The YCK-500CH CNC roll crescent milling machine is a specially designed and customized machine tool for the steel industry. Processing scope and requirements: high speed steel roll, carbide roll ring, tungsten carbide composite roll and ordinary roll precision groove processing (crescent groove, equal height rib, etc.), the machine tool automatically cutting different rotation, any spiral Angle of the crescent, can be any equal (or unequal) division or space around the roll; Product specifications, grades, trademarks and other marks can be engraved automatically on any position of the roll.

The comprehensive adoption of advanced CNC technology and machining programming software makes the mechanical structure of the milling machine relatively simplified, reducing some mechanical transmission links, and significantly reducing the maintenance amount while improving reliability, flexibility and high efficiency.

The milling machine adopts SIEMENS 808D 4-axis distributed computer numerical control system, equipped with the seller's professional Roll Milling Machine automation control software and the roll milling machine graphical Chinese operation interface in line with human habits, with the original dynamic simulation function of the milling and measurement process of the roll milling machine.

Crescent groove forming function and milling method:

● Basic crescent groove forming function: The tool bar axis of the flying cutter milling machine and the workpiece (roller) rotary axis form a 90º angle with each other, the tool bar spindle axis is placed at the center of the roll ring groove, and the tool bar head is located on the plane perpendicular to the workpiece axis and the tool bar axis. When the machine tool is working, the tool bar spindle and the roll complete the interpolation rotation movement, and the tool bar axis performs the feed movement toward the center of the workpiece until the tool bar spindle axis reaches the required center of the projection arc of the roll ring groove transverse rib (crescent groove).

● Basic milling method:

Manual tool setting, program control, automatic milling

Technical parameter:

Workpiece processing diameter	50mm～500mm
Workpiece length	500mm～2500mm
Processing crescent groove specifications	D6-D50
Processing crescent groove angle	Any
Processing crescent groove jump slot	Any
Cutting method/function	Milling head swing engraving + "flying knife" cutting rib groove
Flying knife milling speed (A axis)	0-500rpm
Swing head rotation speed (Z axis)	0-50rpm
Workpiece rotation speed (Y axis)	0-30rpm
Longitudinal feed movement speed (X axis)	0-6000mm/min
Engraving head electric spindle power	2.2KW
Hydraulic clamp length	300mm
Hydraulic clamp clamping range	D6-D25
Hydraulic clamp roller ring clamping accuracy (end face)	≤0.02mm
Hydraulic clamp roller ring clamping accuracy (outer circle)	≤0.02mm
Cooling pump motor	AB25-90W
Control system Siemens	808D
Frequency and power supply voltage	50HZ/AC380V
Machine size (lengthwidthheight)	450018001950mm
Machine weight	6500Kg

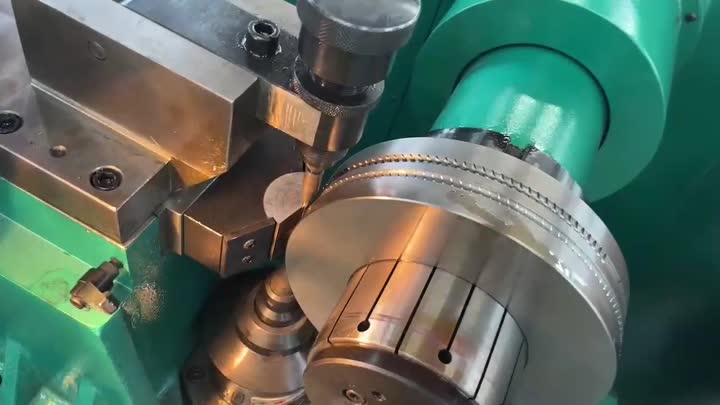

Parts machined by CNC roll milling machines:
