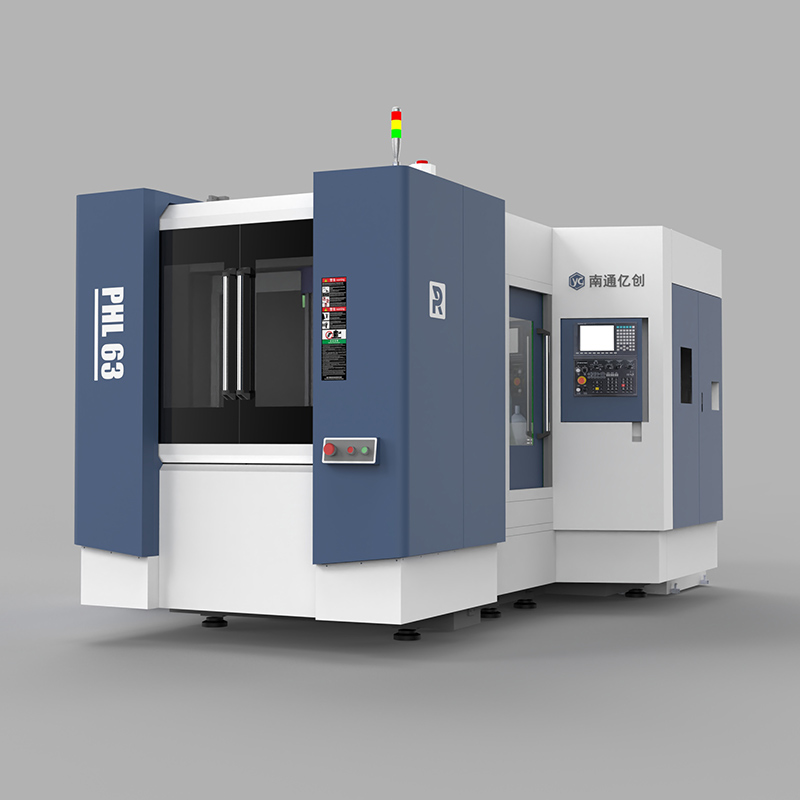

Model No.: PHL 63
Brand: YICHUANG
CNC System: Fanuc, Mitsubishi
Out-of-warranty Service: Video Technical Support, Online Support
According to the different structure and function, the
Horizontal Machining Center can be divided into a variety of types: milling machine type horizontal
Machining Center, gantry type horizontal machining center, dividing head horizontal machining center, milling and drilling composite horizontal machining center, etc., which can meet the needs of different industries for high-precision and high-efficiency processing.
Performance characteristics:
● The horizontal CNC machining center adopts a positive T/inverted T-type structure, adopts a high rigidity, high dynamic and high thermal stability design, and through ANSYS finite element iteration optimization, it achieves a perfect fusion of high rigidity and high precision machining;
● The feed axis drive inertia ratio is ≤2, which can achieve high dynamic performance and stability in machining, and effectively improve the surface machining quality of the workpiece
● Adopt cross DB layout roller type linear guide rail, with ultra-high rigidity in all four directions;
● Adopt high DN value precision grinding grade ball screw, equipped with double nut preload structure, to achieve zero backlash high rigidity and high precision transmission.
● Adopt high-performance spindle group, which can achieve high torque, high speed and low vibration processing.
● Horizontal machining center is suitable for military, aerospace, automobile, mold, machinery manufacturing and other industries, it can complete the processing of boxes, shells, discs, special-shaped parts, etc.;
Standard configuration:
● New generation 22MA PLUS series CNC system
● High dynamic and high rigidity machine tool body
● 8000rpm belt-type high-performance spindle
● 1 degree 1 minute rotary table
● 24 disc tool magazines
● Auger-type chip removal system
● Fully automatic centralized lubrication system
● Cutting fluid cooling system
● Pneumatic system
● Full machine tool protection
● Handheld unit
● Lighting, three-color light
● Random files
Optional configuration:
● FANUC 0i-MF Plus, Mitsubishi M80 CNC system, etc.
● Main motor power upgrade
● Spindle high torque two-speed gearbox
● 5-axis AC swing head
● Oil cooler
● High-pressure central water cooling system
● Screw, guide rail cooling system
● Tool setting instrument, probe, grating ruler
● Automatic chip removal system
● Exchange table system
● 40, 60 chain tool magazines
● Customized special machine
