Performance characteristics:

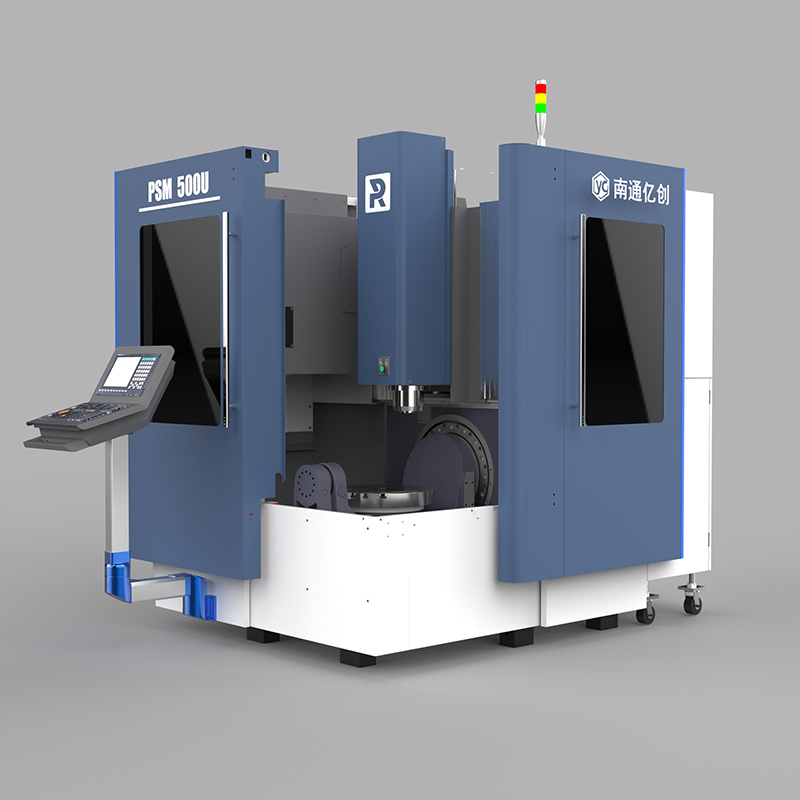

● The vertical five-axis machining center is suitable for military, aerospace, automobile, mold, machinery manufacturing and other industries, and can complete the processing of shells, discs, special-shaped parts and other parts.;
● The vertical five-axis machining center adopts a high-rigidity gantry structure, which is compact and occupies a small area; it has extremely high processing capabilities within the full range of travel. The whole machine is thermally symmetrically designed to ensure good thermal stability;
● The cradle-type rotary table only moves linearly in one direction, overcoming the precision instability of placing the rotary table on the traditional cross slide structure;
● The rotary table is a torque motor direct drive structure, equipped with a high-precision absolute value circular grating, with very high rotary positioning accuracy and long-term accuracy retention.
Standard configuration:
● Siemens 840D SL CNC system
● High dynamic and high rigidity machine tool body
● 18000rpm high-performance electric spindle
● 24 chain tool magazines
● Linear axis grating scale
● Rotary axis absolute value circular grating
● Fully automatic centralized lubrication system
● Cutting fluid cooling system
● Precision water cooler
● Hydraulic unit
● Pneumatic system
● Full machine tool protection
● Handheld unit
● Lighting, three-color light
● Random files
Optional configuration:
● Heidenhain CNC system, etc.
● Electric spindle power upgrade
● Spindle center water outlet 7MPa/5MPa
● Screw and guide cooling system
● 60 chain tool magazines
● Oil mist collector
