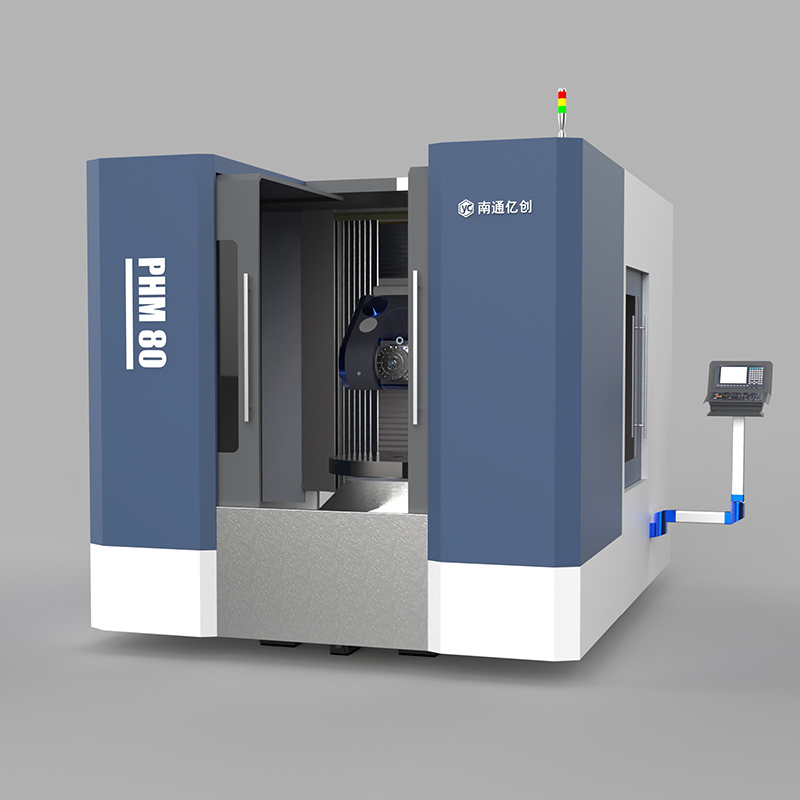

The horizontal five-axis
Machining Center adopts an L-shaped back-wall high-rigidity structure, which has sufficient rigidity and stability to withstand large cutting forces and vibrations, ensuring machining accuracy. It also provides a large machining space and flexibility. It is suitable for military, aerospace, automobile, mold, machinery manufacturing and other industries, and can complete the machining of shells, discs, casings and other parts.
● The spindle adopts high-precision mechanical spindle or electric spindle, which has the characteristics of high precision, high torque and stable operation. The spindle synchronous belt drive or direct drive structure improves the transmission efficiency and precision.
● The horizontal five-axis machining center adopts an L-shaped back-wall high-rigidity structure, which can reduce the weight of the spindle X-axis and Z-axis movement, improve the movement rigidity of the X-axis and Z-axis, increase the movement section of the spindle support end, and improve the processing rigidity;
● The whole machine is thermally symmetrically designed to ensure good thermal stability;
● The use of torque motor to drive the worm gear type high torque swing head can effectively reduce the length of the transmission chain and improve the transmission accuracy and torque;
● The rotary table is a torque motor direct drive structure, equipped with a high-precision absolute value circular grating, with very high rotation positioning accuracy and long-term accuracy retention.
Standard configuration:
● Siemens 840D SL CNC system
● High dynamic and high rigidity machine tool body
● 24000rpm high-performance electric spindle
● Cam roller swing head
● 40-tool chain magazine
● Linear axis grating scale
● Rotary axis absolute value circular grating
● Fully automatic centralized lubrication system
● Cutting fluid cooling system
● Precision water chiller
● Hydraulic unit
● Pneumatic system
● Full machine tool protection
● Handheld unit
● Lighting, three-color light
● Random files
Optional configuration:
● Heidenhain CNC system, etc.
● Electric spindle power upgrade
● Spindle center water outlet 7MPa/5MPa
● Screw and guide cooling system
● 60-tool chain magazine
● Oil mist collector
